| Business Type | Manufacturer, Exporter, Supplier |
| Application | Commonly Used For Underground Gas And Water Supply Lines |
| Color | Blue, Yellow |
| Material | Medium-Density Polyethylene |
| Click to view more | |
Product Details
Grade
PE 80
Size Range
1/2 Inch To 24 Inches
Pressure Rating
PN 4, PN 6, PN 10
Packaging
Coils Or Straight Lengths
Temperature Range
-20°C To 40°C
Certified By
IS 14885:2001 certified
Brand Name
Godfill

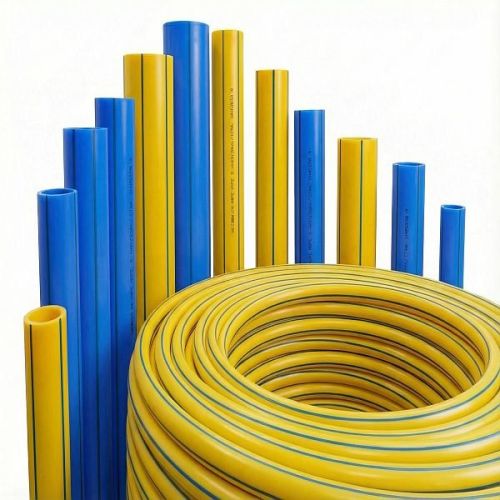

Godfill MDPE pipes are manufactured from PE 80 grade medium-density polyethylene to IS 14885:2001. Available in yellow (gas distribution) and blue/black (water supply) variants, these pipes offer the flexibility and toughness needed for buried utility networks. MDPE has lower stiffness than HDPE, improving its resistance to slow crack growth and making it ideal for distribution networks where ground movement and traffic loads are factors. All pipes are suitable for fusion jointing.
KEY FEATURES
- IS 14885:2001 certified, PE 80 grade
- Yellow variant: Natural gas distribution
- Blue/Black variant: Potable water
- Flexible — resists ground movement
- Excellent slow crack growth resistance
- Fusion weldable (butt and electrofusion)
- Pressure rated PN 4, PN 6, PN 10
- Operating temperature -20°C to +40°C
Applications
- Town gas distribution networks
- CNG and LPG distribution pipelines
- Rural potable water distribution
- Utility distribution networks
- Gas service connections
- Water service connections
MDPE Pipes — Yellow (Gas) — PE 80 Grade (IS 14885:2001)
| NOMINAL OD (MM) | SDR 11 WALL (MM) — PN 8 GAS | SDR 17.6 WALL (MM) — PN 5 GAS | MASS SDR 11 (KG/M APPROX.) |
| 20 | 2 | — | 0.09 |
| 25 | 2.3 | — | 0.14 |
| 32 | 3 | — | 0.23 |
| 40 | 3.7 | 2.3 | 0.36 |
| 50 | 4.6 | 2.9 | 0.56 |
| 63 | 5.8 | 3.6 | 0.89 |
| 75 | 6.8 | 4.3 | 1.26 |
| 90 | 8.2 | 5.1 | 1.81 |
| 110 | 10 | 6.3 | 2.7 |
| 125 | 11.4 | 7.1 | 3.5 |
| 160 | 14.6 | 9.1 | 5.73 |
| 200 | 18.2 | 11.4 | 8.95 |
| 250 | 22.7 | 14.2 | 13.9 |
Yellow colour only. For gas distribution at max 4 bar (SDR 17.6) or 8 bar (SDR 11).
MDPE Pipes — Blue/Black (Water) — PE 80 Grade (IS 14885:2001)
| NOMINAL OD (MM) | SDR 26 WALL (MM) — PN 6 | SDR 17 WALL (MM) — PN 10 | SDR 11 WALL (MM) — PN 16 |
| 20 | — | — | 2 |
| 25 | — | — | 2.3 |
| 32 | — | 2 | 3 |
| 40 | — | 2.4 | 3.7 |
| 50 | — | 3 | 4.6 |
| 63 | 2.5 | 3.8 | 5.8 |
| 75 | 2.9 | 4.5 | 6.8 |
| 90 | 3.5 | 5.4 | 8.2 |
| 110 | 4.3 | 6.6 | 10 |
| 125 | 4.8 | 7.4 | 11.4 |
| 160 | 6.2 | 9.5 | 14.6 |
| 200 | 7.7 | 11.9 | 18.2 |
| 250 | 9.6 | 14.8 | 22.7 |
| 315 | 12.1 | 18.7 | 28.6 |
Blue or black colour for water service. All dimensions in mm per IS 14885:2001.
